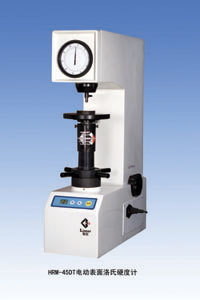

| 產品名稱：HRM-45DT電動表面洛氏硬度計 |
| 產品型號：HRM-45DT |
| 產品產地：上海 |
 |
|
表面洛氏標尺
(Superficial Rockwell Scales)
|
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
|
|
初試驗力（Initial Testing Force） |
3Kg(29.42N) |
|
試驗力（All Testing Force） |
15Kg(147.1N),30Kg(294.2N),45Kg(441.3N) |
|
硬度讀取
(Indication of Hardness Value) |
表盤式（Dial ） |
|
保菏時間(Duration Time) |
2 ~ 60S |
|
試件最大高度
Max. Height of Specimen |
170mm |
|
儀器尺寸(長X寬X高)
(Overall Dimension：LXWXH) |
520X240X700MM |
|
儀器重量(Net Weight) |
80 Kg |
|
電源( Power Supply) |
AC220V + 5%, 50~60 Hz |
|
執行標準 (Carried Standard) |
GB/T230.2 國家標準、JJG112檢定規程
GB/T230.2 Chinese Standard and JJG112 Testing Rule |
|
標準配件、附件
(Standard Accessories) |
金剛石洛氏壓頭，直徑1.5875mm硬質合金球壓頭，大平試抬、中平試臺、V型試臺，硬度塊，電源線等
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table,HR30N and HR30T Hardness Blocks , Power Cable, etc. |
